Threaded Ball Check Valve

Short Description:

  • sns02
  • sns03
  • youtube
  • whatsapp

1. Working pressure: 1.0/1.6Mpa

2. Working temperature:

NBR: 0℃~+80℃

EPDM: -10℃~+120℃

3. Connection type: BSP or BSPT

4. Testing: DIN3230, API598

5. Medium: Fresh Water, Sea water, food stuff, all kinds of oil, acid, alkaline liquid etc.


dsv product2 egr

Product Detail

Product Tags

Product Video

Product Description

The threaded ball check valve is widely used in wastewater, dirty water or high-concentration suspended solid water pipelines. Obviously, it can also be applied to drinking water pressurized pipelines. The temperature of the medium is 0~80℃. It is designed with very low load loss due to total passage and impossible obstacles. It is also a waterproof and maintenance-free valve.

Ductile Iron, epoxy-coated body and bonnet, NBR/EPDM seat and NBR/EPDM-coated aluminum ball.
Either vertically (only upwards) or horizontally installed.

Key features:

  • Available in sizes: 1″ up to 3″.
  • Temperature range: 0°C to 80°C or -10°C to 120°C.
  • Pressure rating: PN10 rated
  • Easy to maintain and install.
  • Low cracking pressure.

For full details please download the accompanying datasheet.

  • Ball Check Valve with Ductile Iron body
  • NBR/EPDM seat
  • Threaded BSP

Product parameter

Product parameter2 Product parameter1

NO. Part Material
1 Body GG25/GGG40
2 Gasket NBR/EPDM
3 Cap GG25/GGG40
4 Ball NBR/EPDM
5 Bolt Stainless steel
6 Nut Stainless steel
DN(mm) 25 32 40 50 65 80
L(mm) 125 132 145 174 200 243
H(mm) 75 75 85 126 113 165

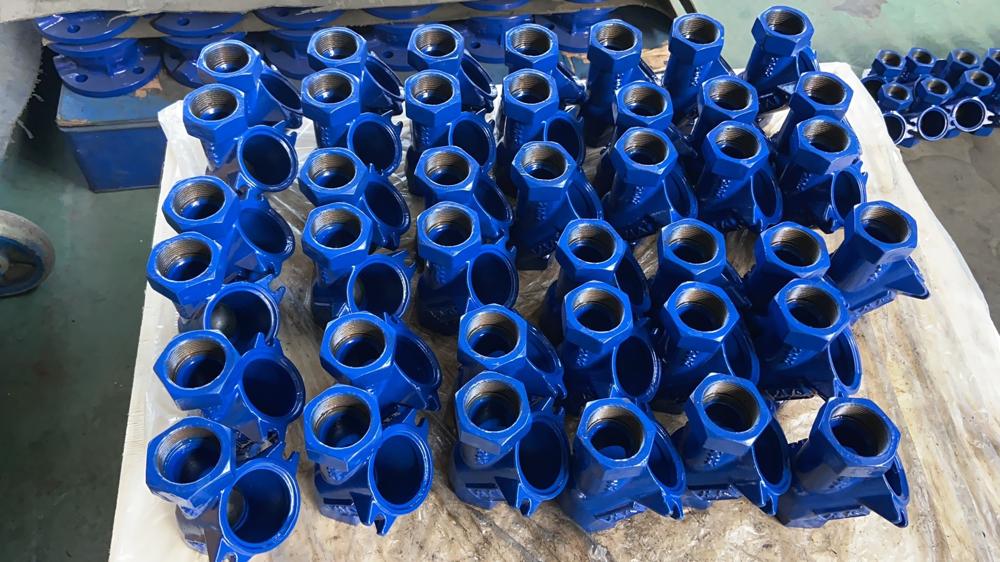

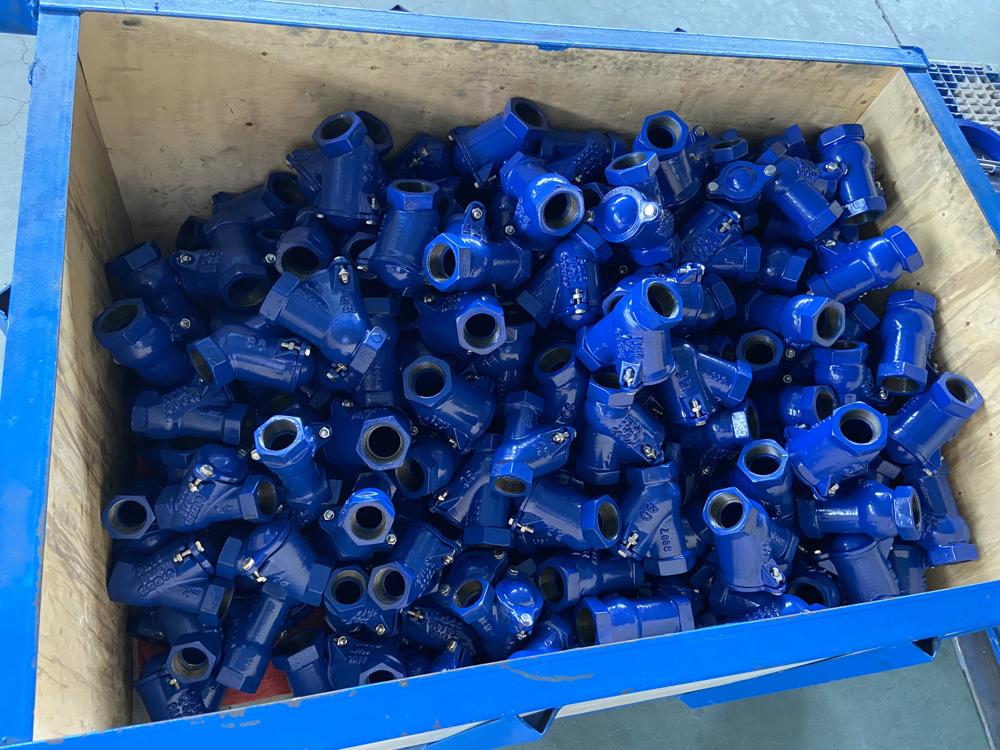

Product Show

minimage16 minimage15
Contact: Judy  Email: info@lzds.cn   phone/WhatsApp +86 18561878609.
